Product detailed description

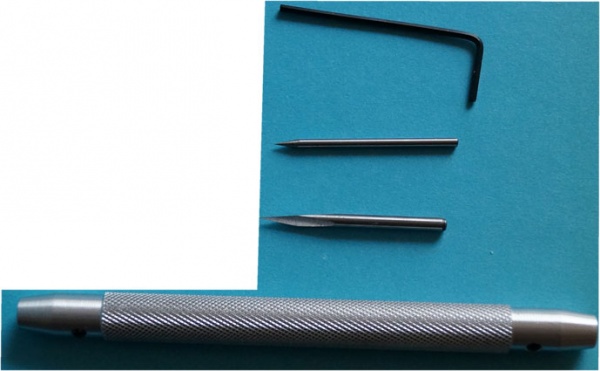

Modelářské rydlo Draco
The Draco P2067 Model Scribing Tool is a manual tool designed for creating fine engraved lines and modifying model details. With two hardened steel tips, it offers different options for controlling the scribing line.
About the product
The Draco P2067 Model Scribing Tool is designed for more precise manual detail work when building and modifying models. It is particularly useful for creating new engraved lines, restoring damaged details, or modifying surface grooves.
The tool features a double-ended duralumin handle measuring 120 mm in length. It includes a hardened steel scribing needle with a diameter of 2 mm and a triangular hardened steel scribing tip with a diameter of 3 mm. The different shapes of the working ends allow users to select the appropriate tip according to the detail being worked on.
The package also includes an Allen key for tightening the tips in the handle. The tool is suitable for modellers who need to manually modify engraved details while maintaining control over the tool’s movement.
Draco P2067 – manual modelling tool for scribing and detailed modifications of models.
Properties
- Double-ended duralumin handle measuring 120 mm in length for securing scribing tips.
- Hardened steel scribing needle with a diameter of 2 mm for fine engraving and detail modifications.
- Triangular hardened steel scribing tip with a diameter of 3 mm for creating engraved grooves.
The double-ended duralumin handle, measuring 120 mm in length, allows the use of two different hardened steel scribing tips.
Tips and tricks
| Product type | Quick overview |
|---|---|
| Use | Scribing fine lines, creating grooves, and making detailed surface adjustments during model-making work. |
| Specific application | Restoring panel lines on plastic models, engraving details, and creating fine grooves when modifying model components. |
| Method and technique | 2 Mm scribing needle: fine engraving and modification of small details. 3 mm triangular scribing tip: creating and modifying engraved grooves. Double-ended handle: securing scribing tips during manual work. |
| Advantages | Two different scribing tips for fine details and creating grooves. Hardened steel tips. Lightweight duralumin handle with double-ended tip mounting. Tips can be tightened and replaced using the included Allen key. |
| What to watch for | Manual scribing requires precise tool guidance and appropriate pressure. Careless handling may damage the model’s surface. Creating deeper grooves may require repeated passes with the tip. |
| Combination | A modelling ruler for guiding straight lines and fine sandpaper for subsequent finishing of the worked surface. |
| Practical tip | Before scribing on a finished model, test the selected tip on a scrap piece of the same material. |
How to use
1. Select the scribing needle or triangular tip according to the desired characteristics of the engraved line. 2. Secure the selected tip in the duralumin handle and tighten it using the included Allen key. 3. Before starting work, test how the tip moves on a scrap piece of the material being worked on. 4. Guide the scribing tool along the desired line using appropriate pressure. Create deeper grooves gradually with repeated passes. 5. After completing the work, remove any resulting burrs and gently smooth the surface if necessary.
Materials and surfaces
Handle: duralumin; scribing needle: hardened steel; triangular scribing tip: hardened steel.
Double-ended duralumin handle with interchangeable tips that can be secured using the included Allen key.

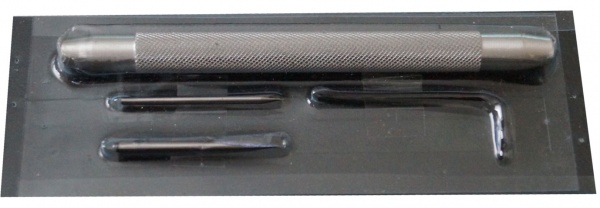

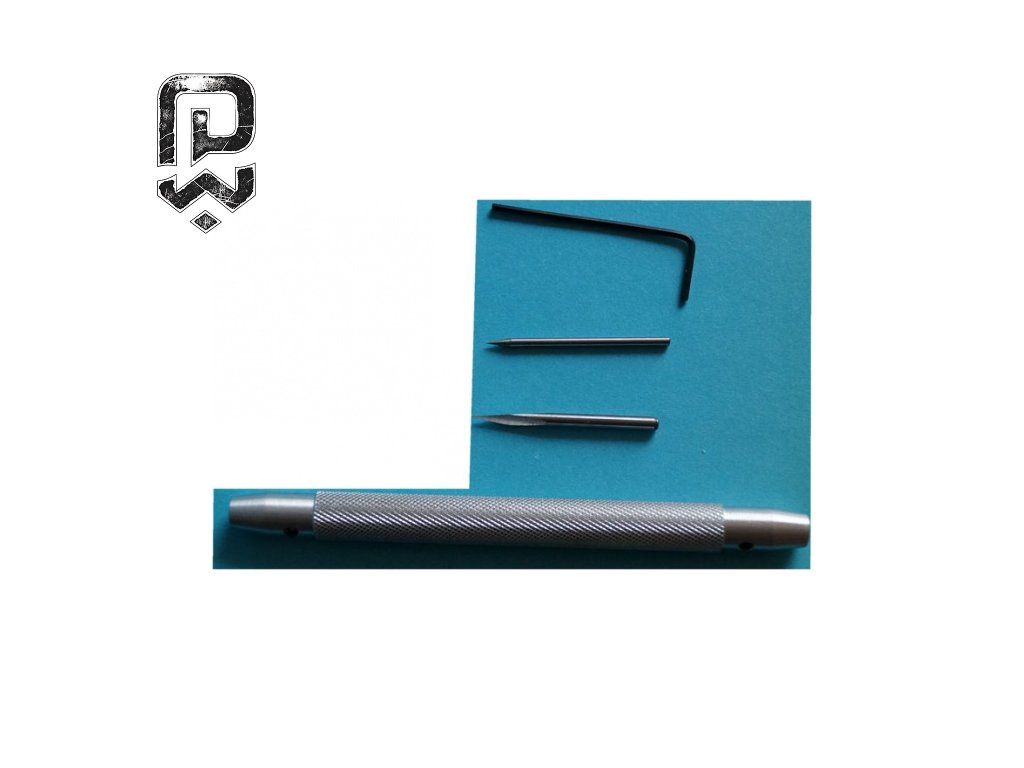

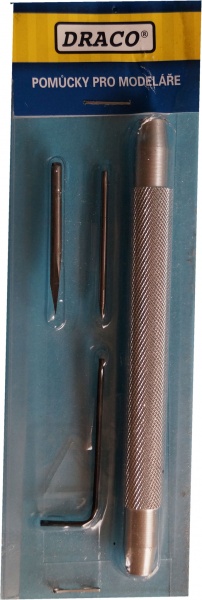

Package contents
| Product type | Package contents |
|---|---|
| Package contents | 1× Double-ended duralumin handle, length 120 mm 1× hardened steel scribing needle, diameter 2 mm 1× triangular hardened steel scribing tip, diameter 3 mm 1× Allen key for tightening the tips |
Recommended accessories
A modelling ruler for guiding straight lines, fine sandpaper for removing burrs, and a modelling cutting mat to protect the work surface. Accessories are not included in the package.
Technical information
| Product type | Quick overview |
|---|---|
| Product type | Manual model scribing tool with interchangeable tips |
| Manufacturer | Draco |
| Volume / size | Handle length: 120 mm; scribing needle diameter: 2 mm; triangular scribing tip diameter: 3 mm. |
| Suitable for | Modellers who need to manually create, restore, or modify engraved lines and small details on models. |
Additional parameters
| Category: | Modeling tools |
|---|---|
| Warranty: | 2 years |
| EAN: | draco P2067 |
| Paint accessories: | Nářadí a pomůcky |
| Material of accessories: | Kov |
| Use of accessories: | Stavba a úpravy modelů |
